UDM22006 DC DC Integrated Magnetic Power Module ( Input 2.3V–5.5V, output 1.2V-3.3V )

Features

Integrated power inductor on ferrite ceramic substrate,

 ultra-small footprint (2.5mm × 2.0mm)

Shielded structure, low EMI noise

Integrated capacitors in a single-package plastic encapsulation,

providing high reliability for surface mount applications

Synchronous rectification technology achieves high efficiency

Automatic PFM/PWM Mode Switching Function

Uses low-ripple PFM mode under light load conditions

Achieves 2% voltage accuracy over the full load current range

Wide input voltage range:2.3V~5.5V

Maximum Load Current: 600mA

Fixed Output Voltage: 1.2V to 3.3V (Factory Settings)

Internal Soft Start and Overcurrent Protection

Applications

Industrial control

Medical imaging equipment

Telecommunications and network applications

Alternative to linear regulators (LDO)

Miniaturized applications

Description

The UDM22006 is a low-power buck DC-DC converter suitable for space-constrained or noise-sensitive applications.

The device features an inductor-embedded ferrite substrate, which reduces both radiated EMI noise and conducted noise.

It also uses a plastic integrated package to enhance mounting reliability.

By adding input/output capacitors, it can be used as an alternative to an LDO. Its low noise and ease of use ensure

reliable power quality. The device smoothly switches between PFM and PWM modes based on the load current.

It automatically switches to PFM mode under light load conditions to extend battery life and switches to PWM mode

under heavy load conditions to ensure low ripple and high efficiency. The device maintains excellent output voltage

 accuracy even in PFM mode, keeping the output voltage accuracy within 2% over the entire load current range (0 to 600mA).

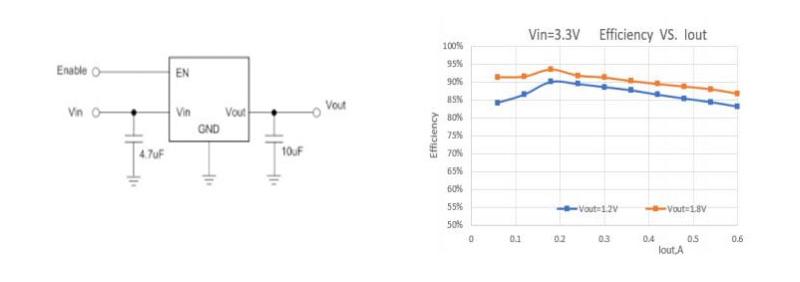

Typical Application Circuit

Note: Recommended Cin: 4.7μF/6.3V, Recommended Cout: 10μF/6.3V; Add more capacitance can decrease the ripple.

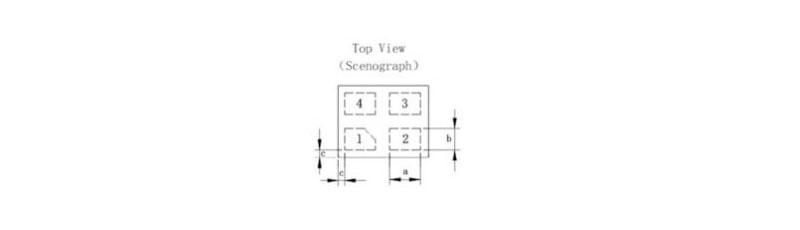

Pin Configuration

Electrical Characteristics

Note: Stress above the values listed in the "Absolute Maximum Ratings" section may cause permanent damage to the device. Exposure to any absolute maximum rating condition for extended periods may affect the reliability and lifespan of the device.

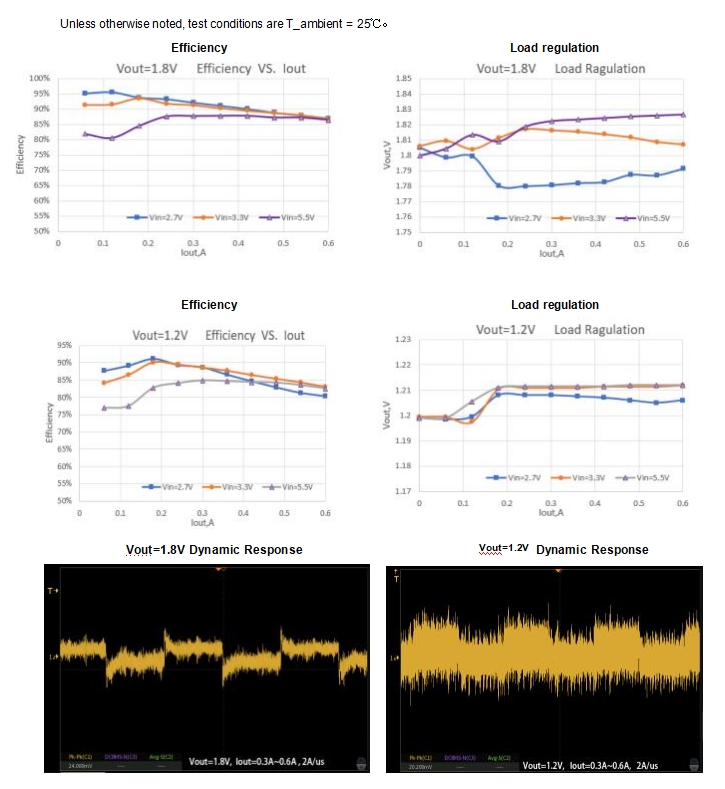

Typical Characteristics

Operation

summary

The UDM22006 is a DC-DC buck power module with synchronous rectification control, featuring an embedded inductor on a magnetic ceramic substrate. It integrates a control IC, power MOSFETs, and filtering capacitors. The module requires only input and output capacitors for operation. It has a small footprint and high power density, making it particularly suitable for applications with limited board space.

It uses a ceramic substrate with a shielded structure, providing excellent EMI resistance. It combines high reliability, good thermal conductivity, and low temperature rise.

The device smoothly switches between PFM and PWM modes based on the load current. Under light load conditions, it automatically switches to PFM mode to extend battery life. Under heavy load conditions, it automatically switches to PWM mode to ensure low ripple and high efficiency. The device maintains good output voltage accuracy even in PFM mode.

It maintains 2% output voltage accuracy over the entire load current range (0 to 600mA).

Internal Soft-Start (SS)

The soft start function is designed to prevent inrush current during module startup. The UDM22006 has an integrated soft start feature: when the module is enabled, the typical soft start time is 280μs.

Active Output Capacitor Discharge

After EN is turned off, an internal resistive discharge path is provided between the output capacitor and ground.

Overcurrent Protection and Short Circuit (OCP)

The UDM22006 features cycle-by-cycle current limit protection. When the inductor current peak exceeds the internal peak current limit threshold, the upper transistor is turned off and a counter begins. After about ten consecutive occurrences, the device will enter the EN off state. Approximately 1.5ms later, EN will turn on again, and the power module will perform a soft start.

Over temperature Shutdown Protection (OTP)

To prevent damage from overheating, the UDM22006 stops switching when the internal chip temperature exceeds 150°C. Once the temperature falls below the threshold (typically 130°C), the module resumes operation.

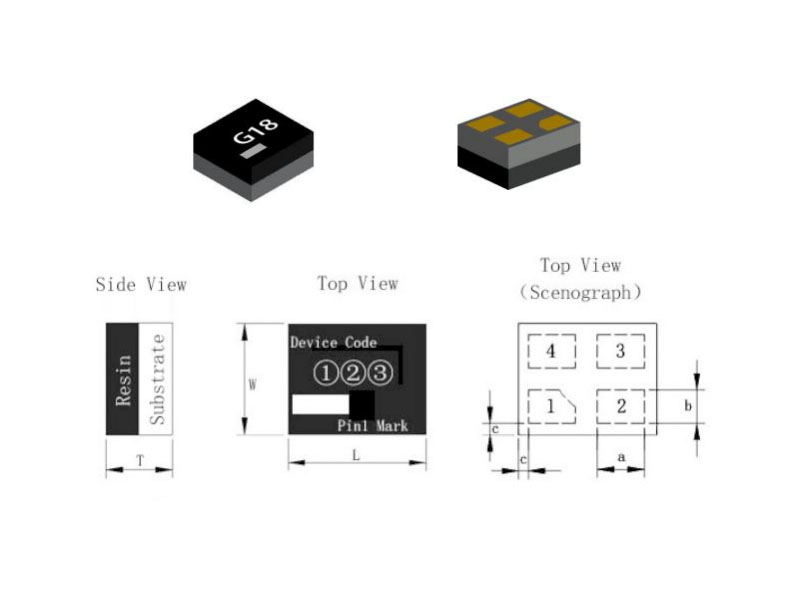

Package Description

Soldering and Storage Precautions

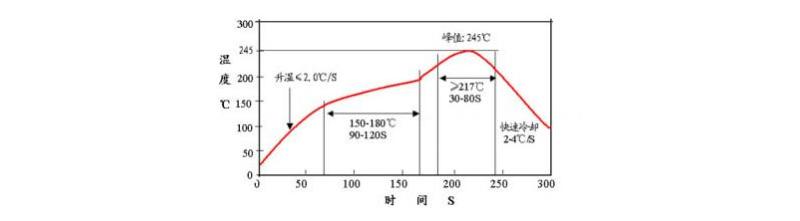

Recommended Reflow Soldering Profile

Note:

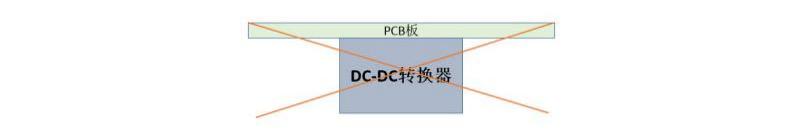

1. Due to the larger size of the module, do not place the module on the bottom side of the board during reflow soldering to avoid module drop.

2.  For bulk and unpackaged products, store them in a dry box (relative humidity should be kept below 10%). For products that are still in their original packaging, store them in a dry box whenever possible.

3. Before mounting, moisture-sensitive products must be baked according to strict baking conditions: bake for more than 48 hours at 125°C.
