RZ35A09 Servo Motor Encoder Absolute
Details
RZ35A08 Servo Motor Encoder Absolute
Details
RZ35D06Q Servo Motor Encoder Absolute
Details
RZ35D06S Servo Motor Encoder Absolute
Details
RZ4809A Servo Motor Encoder Absolute
Details
RZH4409A Servo Motor Encoder Absolute
Details
RZL4408A Servo Motor Encoder Absolute
Details
RZL4409A Servo Motor Encoder Absolute
Details
UZ4408 Servo Motor Encoder Incremental
Details
UZ4409 Servo Motor Encoder Incremental
Details
UZ4809 Servo Motor Encoder Incremental
DetailsWell protected
High frequency response, high speed
High reliability
Resolution | 1000-5000 CPR |
| Signal | Differential output |
| Count frequency | up to 500 KHZ |
| Working temperature | -20 ℃ —+105 ℃ |
| Supply | Single 5V Supply |
(Note: The spring tab should be selected according to the motor end size.)
| SIGNAL | A | B | Z | - A | - B | - Z | U | V | W | - U | - V | - W | Vcc | GND |
| COLOR | GREEN | WHITE | YELLOW | GREEN/ BLACK | WHITE/ BLACK | YELLOW/ BLACK | BROWN | GREY | ORANGE | BROWN/ BLACK | GREY/ BLACK | ORANGE/ BLACK | RED | BLACK |
Cable-Saving Type
| SIGNAL | A | B | Z | - A | - B | - Z | Vcc | GND |
| COLOR | BLUE | GREEN | YELLOW | BLUE/BLACK | GREEN/BLACK | YELLOW/BLACK | RED | BLACK |
UZ Series Incremental Encoder is mainly used for servo-driven control systems. It provides feedback information and auxiliary signals required by accurate position and speed control units.
| Item | Description | QTY/Box | Boxes/Carton | G.W | N.W | QTY/Carton | Package Size |
| UZ35 | Incremental Encoder, Outer Diameter 35mm | 10pcs | 10boxes | 0.38kgs | 0.3kgs | 100pcs | 310*130*45mm |
Discover all the technical specifications by downloading the datasheet today.
| Part Number | Interface |

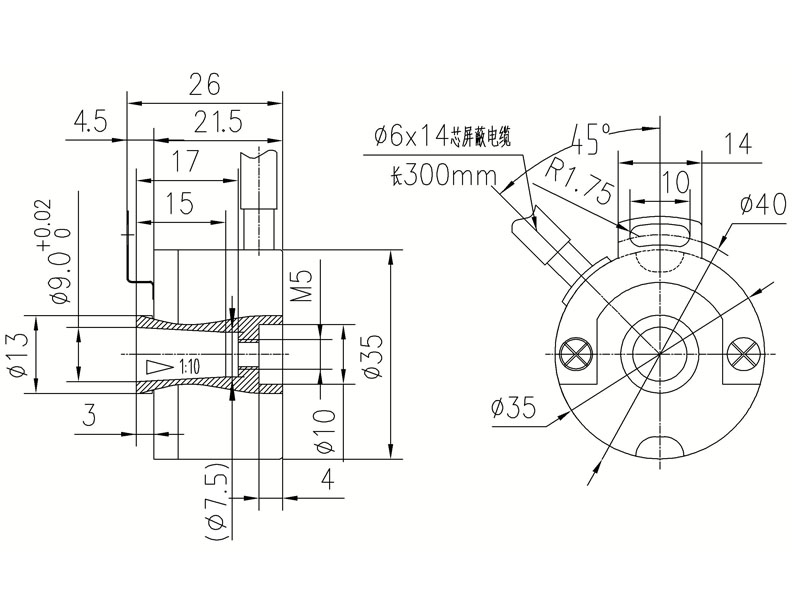

Dimensions
(mm) |
Resolution Ranges | Resolution Counter |
Communication Frequency |
Working Temperature |
Communication Frequency |
Operation Speeds |
Protection Structure |
Footprint 3D | Datasheet | Sample |
| RZ35A08 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 |  |
 |
|
| RZ35A09 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06Q | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06S | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4408A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZH4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ4809A | RS485 | Φ48mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| UZ3509 | RS485 | Φ35mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4408 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4409 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4809 | RS485 | Φ48mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| RS972 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RS970 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
Essential for Precision and Reliability in Medical Equipment
Improve Automation and Efficiency in Various Robotic Applications
Improve the Efficiency and Reliability of Automation Systems
Accurate Feedback on Position and Speed
