RZ35A09 Servo Motor Encoder Absolute
Details
RZ35A08 Servo Motor Encoder Absolute
Details
RZ35D06Q Servo Motor Encoder Absolute
Details
RZ35D06S Servo Motor Encoder Absolute
Details
RZ4809A Servo Motor Encoder Absolute
Details
RZH4409A Servo Motor Encoder Absolute
Details
RZL4408A Servo Motor Encoder Absolute
Details
UZ3509 Servo Motor Encoder Incremental
Details
UZ4408 Servo Motor Encoder Incremental
Details
UZ4409 Servo Motor Encoder Incremental
Details
UZ4809 Servo Motor Encoder Incremental
DetailsWorking Temperature | -20°C to +105°C |
Current Consumption | < 100 mA |
Battery Voltage | 3.6 V DC |
Battery Fault Voltage | 2.5 V |
Battery Warning Voltage | 3.1 V |
Signal | Differential output |
Supply Voltage | Single 5V supply |
Rise/Fall Time | Around 100 ns |
Insulated Resistance | 50 MΩ |
Resolution Ranges | 131072 (17-bit) to 8388608 (23-bit) |
Multi-Turn Resolution Counter | 16 bits (65536 revolutions) |
Absolute Positioning Accuracy | < ±50 angular seconds |
Repetition Positioning Accuracy | < ±3 angular seconds |
Battery Voltage Fault Warning | Yes |
Interface | RS485 |
Communication Frequency | ≤ 16 kHz |
Baud Rate | 2.5 MHz |
Allowable Shaft Deviations | Axial: ±0.5 mm, Radial: ±0.02 mm, Dip Angle: 0.1°, Axial Endplay: <0.1 mm, Radial Runout: <0.01 mm |
Operation Speeds | Up to 6000 rpm |
Shaft Diameter | axis of a cone Ø9 taper 1:10 |
Moment of Inertia | 0.68 kg·mm² |
Rotor Angular Acceleration | During power supply: ≤80000 rad/s²; When battery-powered: ≤4000 rad/s² |
Mechanical Shock | Impact acceleration: 980 m/s² for 11 ms; Impact tested 3 times in each direction, totally 18 times |
Vibration Resistance | 10 to 55Hz, keeping the amplitude of 1.5mm Acceleration between 55 and 2000Hz is 98m/s2 XYZ 2 hours per axial direction, 6 hours in total |
Working Temperature Range | -20°C to +105°C |
Relative Humidity | ≤90% (40°C/21 days, based on EN60068-2-78), without condensation |
Degree of Protection | IP40 |
(Note: The spring tab should be selected according to the motor end size.)
| Lead Color | Red | Black | Blue | Yellow | Brown | White | Shield |
| Signal | 5V | GND | 485+ | 485− | Battery+ | Battery GND | P |
RZL4409A Absolute Encoder is mainly used for servo-driven control systems. It provides feedback information and auxiliary signals required by accurate position and speed control units.
| Item | Description | QTY/Box | Boxes /Carton | G.W | N.W | QTY /Carton | Package Size |
| RZ44 | Absolute Encoder,Outer Diameter 44mm | 10pcs | 10boxes | 0.8kgs | 0.7kgs | 100pcs | 340*180*47mm |
Discover all the technical specifications by downloading the datasheet today.
| Part Number | Interface |

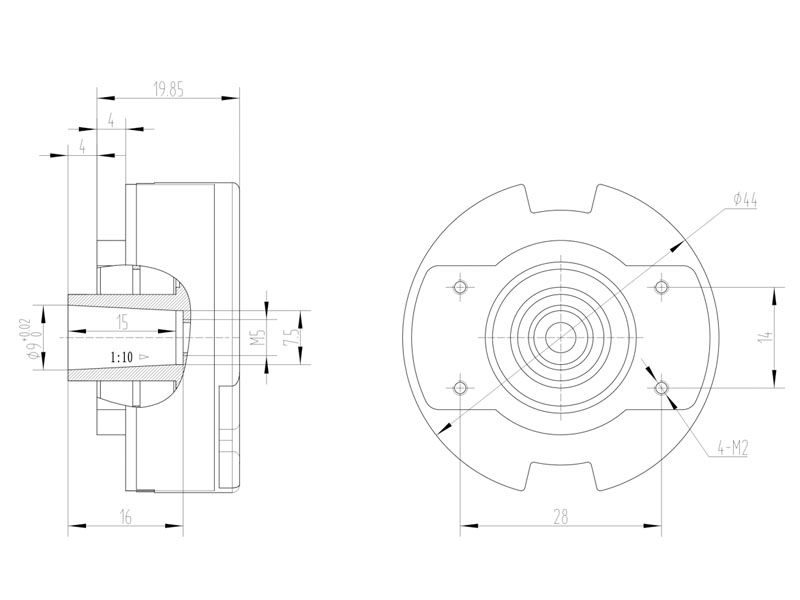

Dimensions
(mm) |
Resolution Ranges | Resolution Counter |
Communication Frequency |
Working Temperature |
Communication Frequency |
Operation Speeds |
Protection Structure |
Footprint 3D | Datasheet | Sample |
| RZ35A08 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 |  |
 |
|
| RZ35A09 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06Q | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06S | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4408A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZH4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ4809A | RS485 | Φ48mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| UZ3509 | RS485 | Φ35mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4408 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4409 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4809 | RS485 | Φ48mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| RS972 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RS970 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
