Absolute Optical Encoder: Precision Feedback for Modern Motion Control

An absolute optical encoder is a critical component in motion control systems, offering precise feedback on the absolute position of a rotating shaft. Unlike incremental encoders, which measure changes in position, absolute optical encoders provide the exact angular position without requiring movement or a reference point upon power-up. This capability makes them indispensable in applications demanding high accuracy and reliability.

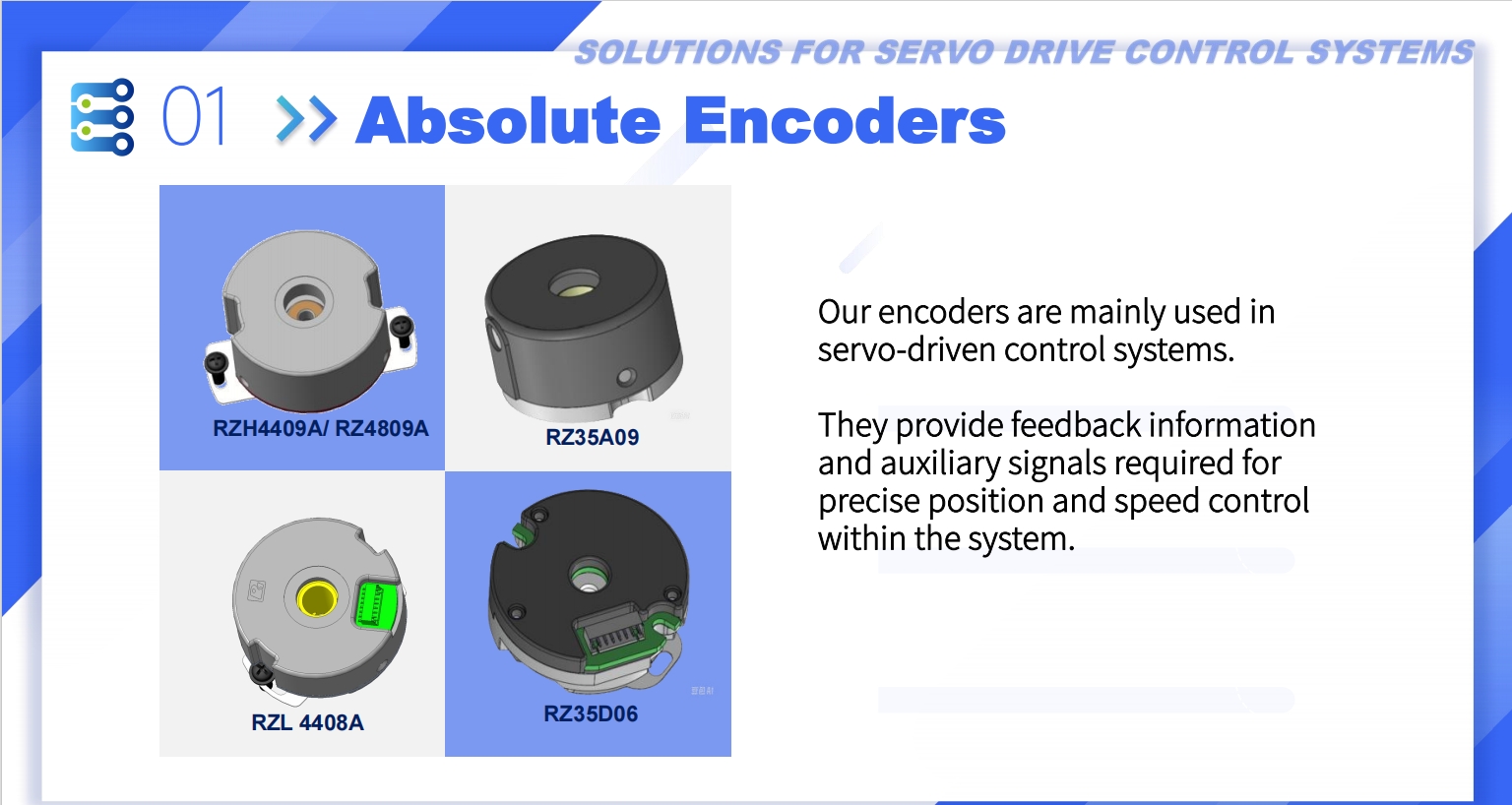

The RZ Series and RZ35 Series absolute optical encoders are advanced solutions designed to meet the diverse needs of modern industries. Combining cutting-edge technology with robust designs, these encoders deliver unmatched performance, precision, and durability for motion control applications.

WWhat is an Absolute Optical Encoder?

Absolute optical encoders determine the exact position of a rotating shaft by using a code disc with unique patterns for each angular position. These patterns are read by optical sensors and converted into digital signals, ensuring accurate feedback even after power loss. This makes them ideal for industries like robotics, CNC machining, and factory automation, where precision and reliability are paramount.

RZ Series Absolute Optical Encoder

The RZ Series is a versatile encoder offering high resolution and energy efficiency. Available in both single-turn and multi-turn configurations, it is suitable for a wide range of industrial applications.

Key Features:

1. High Resolution: Provides resolutions from 17-bit (131,072 positions) to 23-bit (8,388,608 positions) for precise positioning.

2. Wide Operating Temperature Range: Operates reliably between -20°C to +105°C, ensuring performance in harsh environments.

3. Low Power Consumption: Consumes less than 100 mA, enhancing energy efficiency.

4. Robust Insulation Resistance: Withstands up to 50 MΩ, ensuring durability in challenging conditions.

5. Differential Output: Reduces noise and improves signal integrity for accurate readings.

6. Fast Response Times: Rise and fall times of approximately 100 ns, enabling quick signal processing.

Advantages:

1. Exceptional precision for position and speed feedback.

2. Reliable performance in extreme industrial environments.

3. Easy integration with a single 5V power supply.

4. Ideal for robotics, CNC machines, and automation systems requiring consistent accuracy.

RZ35 Series Absolute Optical Encoder

The RZ35 Series is a compact encoder specifically designed for space-constrained servo motor applications. Despite its small size (outer diameter of 35mm), it delivers high-resolution feedback and robust performance.

Key Features:

1. Compact Design: Ø35mm size allows easy integration into tight spaces.

2. High Resolution Range: Supports resolutions from 17-bit to 23-bit, ensuring fine-grained feedback.

3. Multi-Turn Counter: Tracks up to 65,536 revolutions (16 bits) for extended positioning requirements.

4. Absolute Positioning Accuracy: Delivers accuracy within ±50 angular seconds depending on motor assembly fit.

5. Wide Operating Temperature Range: Operates reliably from -20°C to +105°C.

6. Differential Output Signal: Ensures noise immunity and stable performance in industrial environments.

Advantages:

1. Compact size makes it ideal for servo motors with limited space.

2. High accuracy ensures reliable performance in precision-critical applications.

3. Robust design withstands vibrations, shocks, and extreme temperatures.

4. Suitable for high-speed operations with speeds up to 6000 RPM.

Why Choose the RZ Series and RZ35 Series?

Both the RZ Series and RZ35 Series are engineered to deliver exceptional performance tailored to modern industrial needs. Here’s why they stand out:

1. High Precision Feedback

Advanced resolution options ensure accurate motion control for complex tasks.

2. Durability in Harsh Conditions

Wide temperature ranges (-20°C to +105°C) and robust designs make them suitable for challenging industrial environments.

3. Ease of Integration

A single 5V power supply simplifies installation while RS485 communication ensures compatibility with modern systems.

4. Compact Design Options

The RZ35 Series is perfect for space-constrained setups without compromising performance.

5. Multi-Turn Capability

Tracks multiple revolutions (16-bit counters), making them ideal for extended positioning requirements in dynamic systems.

Applications of Absolute Optical Encoders

The RZ Series and RZ35 Series are suitable for various industries requiring precise motion control:

1.Robotics: Provides accurate joint positioning and smooth motion control.

2.CNC Machines: Ensures micron-level toolpath accuracy for machining operations.

3.Factory Automation: Delivers reliable feedback for efficient operation of automated production lines.

4.Medical Equipment: Enables smooth and precise motion in imaging systems or surgical robots.

The RZ Series and RZ35 Series absolute optical encoders are designed to meet the evolving demands of modern industries. Whether you need versatile high-resolution options like the RZ Series or compact solutions like the RZ35 Series, these encoders offer unparalleled precision, reliability, and durability. Their advanced features make them indispensable components in motion control systems across robotics, manufacturing automation, CNC machining, and more.

By choosing these absolute optical encoders, you ensure optimal performance in even the most challenging environments while achieving precise motion control tailored to your application needs.
